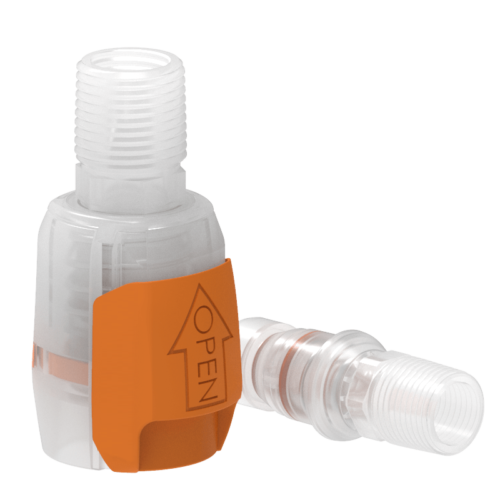

Gewinde Schnellkupplungen - Technische Daten
Beschreibung
Serien: Small, Medium & Large
Feder nicht im Fluidpfad
Gewindetypen:
- 1/8" NPT
- 1/4" NPT
- 3/8" NPT
- 1/2" NPT

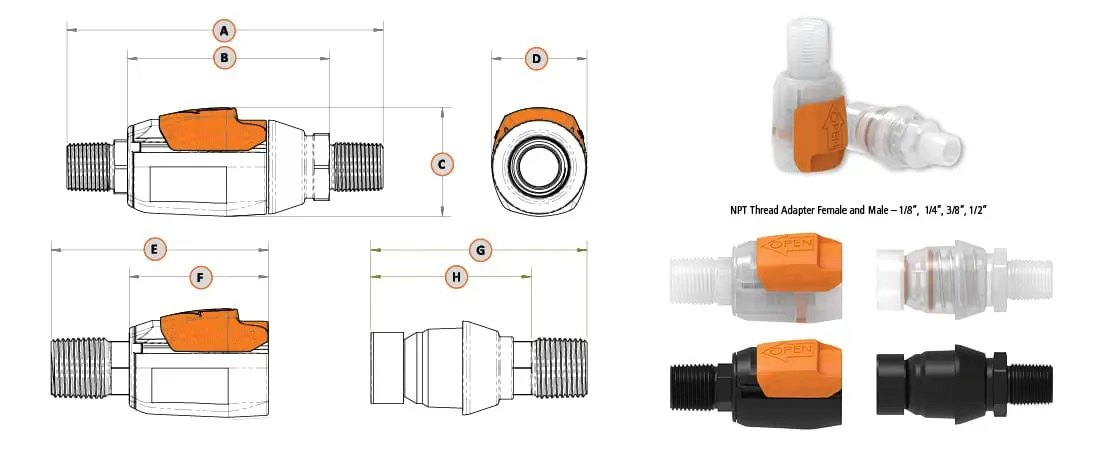

Abmessungen (mm)
Serie
|
Gewinde
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
|---|---|---|---|---|---|---|---|---|---|
Small (1)
|
NPT 1/8″
|
77,22
|
49,78
|
22,86
|
21,34
|
53,09
|
36,58
|
48,26
|
37,08
|
Small (2)
|
NPT 1/8″
|
77,22
|
49,78
|
22,86
|
21,34
|
53,09
|
36,58
|
48,26
|
37,08
|
Medium (1)
|
NPT 1/4″
|
91,95
|
54,1
|
28,45
|
25,15
|
61,21
|
39,88
|
56,64
|
40,13
|
Medium (2)
|
NPT 1/4″
|
91,95
|
54,1
|
28,45
|
25,15
|
61,21
|
39,88
|
56,64
|
40,13
|
Medium (3)
|
NPT 1/4″
|
91,95
|
54,1
|
28,45
|
25,15
|
61,21
|
39,88
|
56,64
|
40,13
|
Medium (1)
|
NPT 3/8″
|
91,95
|
54,1
|
28,45
|
25,15
|
61,47
|
39,88
|
56,64
|
40,13
|
Medium (2)
|
NPT 3/8″
|
91,95
|
54,1
|
28,45
|
25,15
|
61,47
|
39,88
|
56,64
|
40,13
|
Medium (3)
|
NPT 3/8″
|
91,95
|
54,1
|
28,45
|
25,15
|
61,47
|
39,88
|
56,64
|
40,13
|
Large (1)
|
NPT 1/2″
|
117,6
|
71,12
|
38,1
|
33,53
|
76,71
|
49,02
|
76,2
|
56,39
|
Large (2)
|
NPT 1/2″
|
117,6
|
71,12
|
38,1
|
33,53
|
76,71
|
49,02
|
76,2
|
56,39
|
Large (3)
|
NPT 1/2″
|
117,6
|
71,12
|
38,1
|
33,53
|
76,71
|
49,02
|
76,2
|
56,39
|
Gewichte Version mit Ventilen (g)
Serie
|
Weiblich
|
Männlich
| ||||
|---|---|---|---|---|---|---|
PP
|
PVDF
|
GFBN
|
PP
|
PVDF
|
GFBN
| |
Small (1)
|
8
|
13
|
12
|
4
|
7
|
6
|
Small (2)
|
8
|
13
|
12
|
4
|
7
|
6
|
Medium (1)
|
11
|
19
|
17
|
6
|
9
|
9
|
Medium (2)
|
11
|
19
|
17
|
6
|
9
|
9
|
Medium (3)
|
11
|
19
|
17
|
6
|
9
|
9
|
Large (1)
|
27
|
45
|
41
|
15
|
27
|
23
|
Large (2)
|
27
|
45
|
41
|
15
|
27
|
23
|
Large (3)
|
27
|
45
|
41
|
15
|
27
|
23
|
Gewichte Version ohne Ventile (g)
Serie
|
Weiblich
|
Männlich
| ||||
|---|---|---|---|---|---|---|
PP
|
PVDF
|
GFBN
|
PP
|
PVDF
|
GFBN
| |
Small (1)
|
8
|
13
|
12
|
2
|
4
|
3
|
Small (2)
|
8
|
13
|
12
|
2
|
4
|
3
|
Medium (1)
|
10
|
18
|
16
|
3
|
6
|
4
|
Medium (2)
|
10
|
18
|
16
|
3
|
6
|
4
|
Medium (3)
|
10
|
18
|
16
|
3
|
6
|
4
|
Large (1)
|
24
|
42
|
37
|
9
|
18
|
14
|
Large (2)
|
24
|
42
|
37
|
9
|
18
|
14
|
Large (3)
|
24
|
42
|
37
|
9
|
18
|
14
|
